Produktbeschreibung

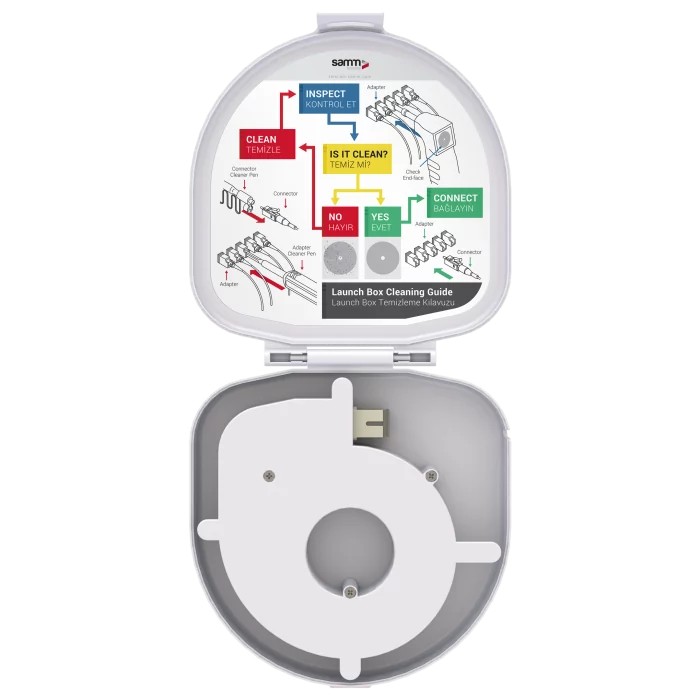

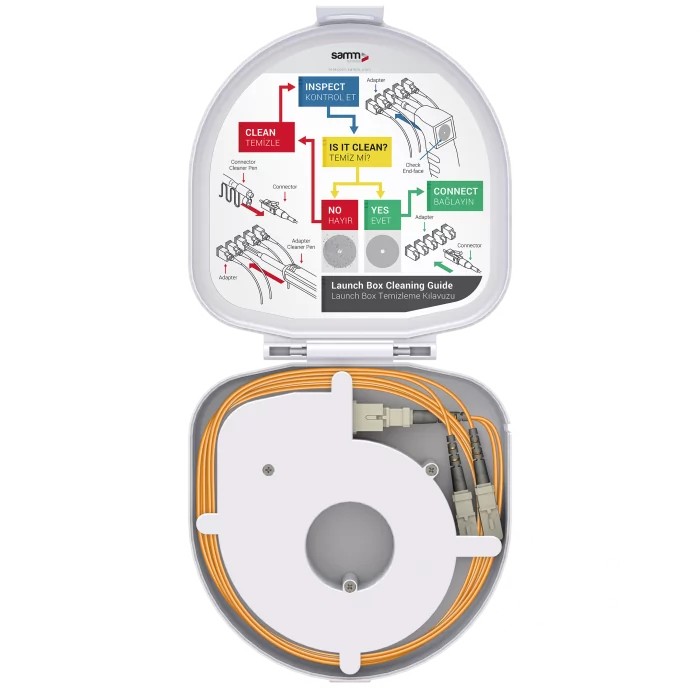

Adapter Type Fiber Optic OTDR Launch Box | Multi-mode G651.OM2 | SC UPC/SC UPC | 150 meters
SC-UPC/SC-UPC Adapter Type, 150 meters, G651.OM2 (50/125 µm), Multi-mode Fiber Launch Box.
These products are called as dead zone box, dead zone eliminator, pulse suppressor, fiber ring, fiber optic launch cable.
Applications
- Multi-mode network's measurements
- Simulation of loss, length, delayed time and system's reflectance
- Conform to IEC, EIA-TIA and Telecordia performance requirements
- Use as a launch and receive (tail) lead at each end of the fiber under test in order to comply with optical link testing standards ISO/IEC 14763-32006
- Equipment Calibration
Key Features

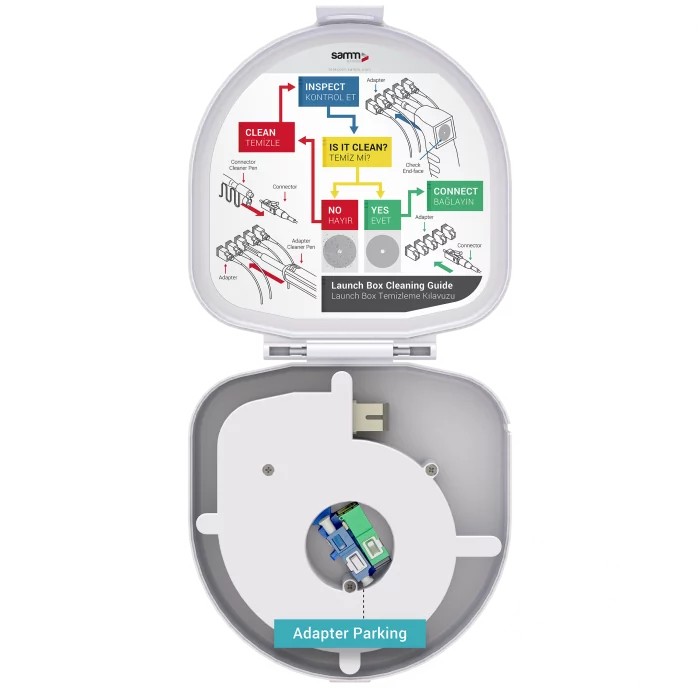

- Adapter parking area

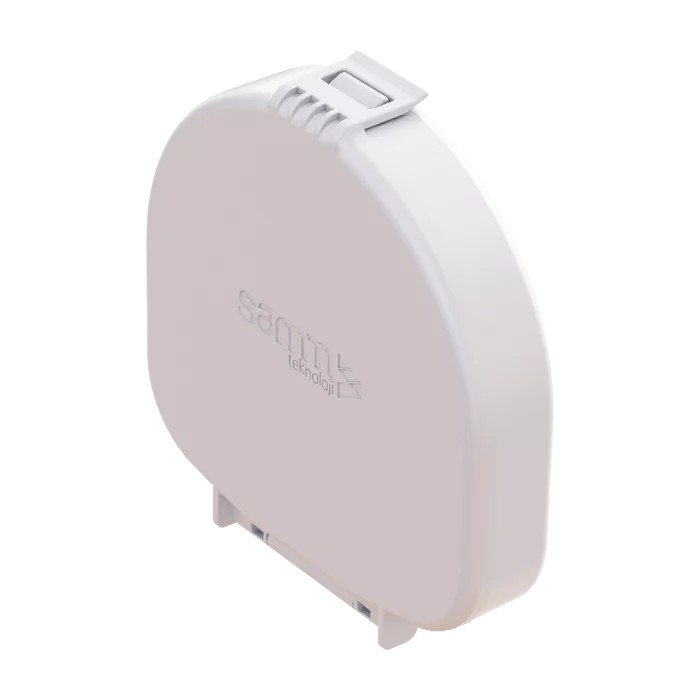

- Protected case structure

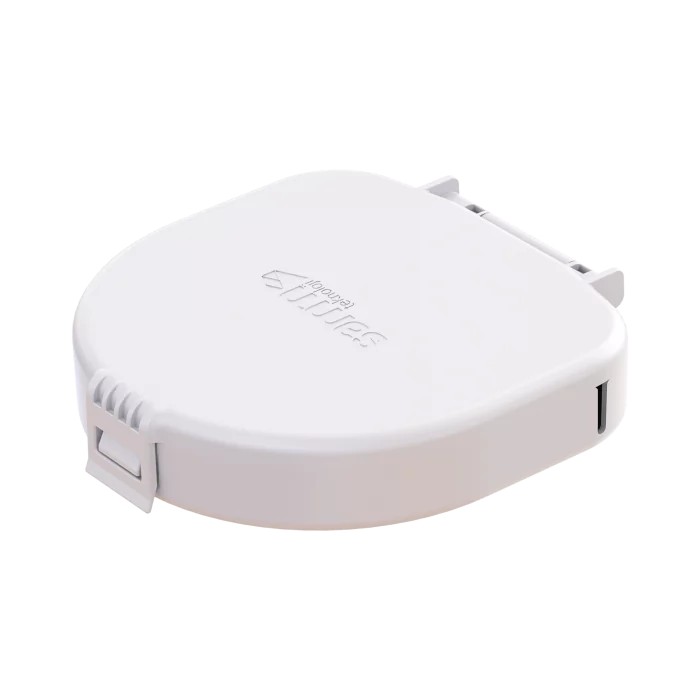

- Small/Slim/Low profile design
- Prevents fiber damage and stress during use or transportation
- Test result tracking via barcode scanning
- Ability to use with the cover closed
- Belt hanger option can be used in the field
